Aerial Bundled Cables (ABC) are several phase conductors insulated and tightly bundled together with bare/insulated neutral conductor for using in overhead power lines. Aerial Bundled Cable is primarily used for overhead service applications such as construction sites, outdoor or street lighting, etc. It is also used for electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.
1.APPLIACATION: DISTRIBUTION LINE POWER NETWORKS
2.ELECTRICAL PERFORMANCE: 0.6/1kV
3.STANDARD: ASTM
4.CORE IDENTIFICATION: BY COLOR STRIPE, BY RIB, BY NUMBER
5.CHEMICAL & UV & OIL RESISTANCE: GOOD
6.MINIMUM BENDING RADIUS: x15 CABLE DIAMETER

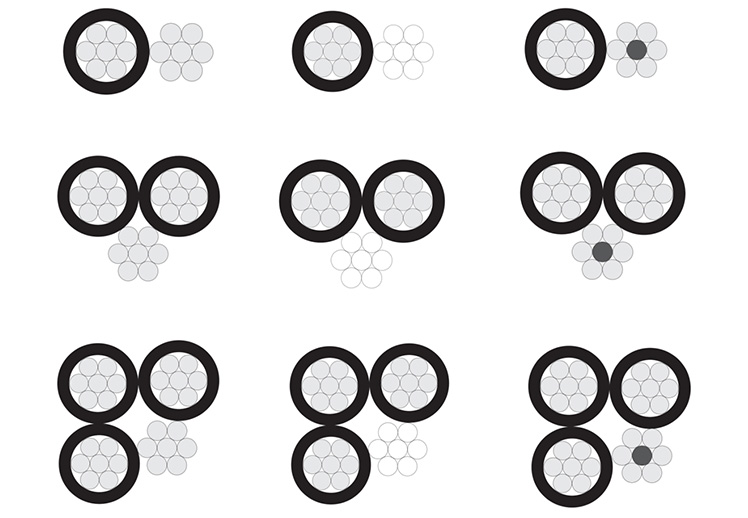

7.CORE: 1, 1+1, 2+1, 3+1
8.THERMAL PERFORMANCE
MAXIMUM SERVICE TEMPERATURE:90℃
MAXIMUM SHORT-CIRCUIT TEMPERATURE:250℃(max. 5s)
MINIMUM SERVICE TEMPERATURE:-20℃
9.INSTALLATION CONDITIONS: OPEN AIR, BURIED.
10. CABLE MARKING: OIL INK PRINTING, LASER PRINTING, EMBOSSING PRINTING
11. PACKAGING: BY ROLL, BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM.

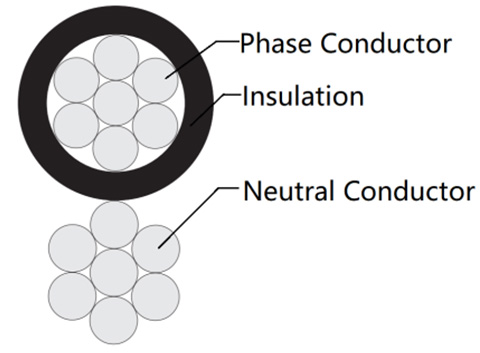

Conductor: Circular stranded, rounded, compacted aluminum conductor.
AAAC conductor and ACSR conductor(for covered line wire).
Insulation: Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE).
Bare AAC, AAAC, ACSR.
| COVERED LINE WIRE | |||||||
| Code word | Phase Conductors | Rated Strength | Nominal Weight | ||||
| Size | Number of Wires | Insulation Thickness | Nominal Diameter | ||||
| Bare | O.D. | ||||||
| AWG or Kcmil | mm | mm | mm | kg | kg/km | ||
| AAC | |||||||
| Plum | 6 | 7 | 0.762 | 4.674 | 6.198 | 255 | 51.27 |
| Apricot | 4 | 7 | 0.762 | 5.715 | 7.239 | 400 | 76.33 |
| Peach | 2 | 7 | 1.143 | 7.417 | 9.703 | 612 | 127.55 |
| Nectarine | 1 | 7 | 1.143 | 8.328 | 11.481 | 789 | 169.52 |
| Quince | 1/0 | 7 | 1.524 | 9.347 | 12.395 | 903 | 206.14 |
| Haw | 1/0 | 19 | 1.524 | 9.474 | 12.522 | 980 | 206.96 |
| Orange | 2/0 | 7 | 1.524 | 10.513 | 13.561 | 1139 | 261.02 |
| Ironwood | 2/0 | 19 | 1.524 | 10.643 | 16.391 | 1211 | 253.21 |
| Fig | 3/0 | 7 | 1.524 | 11.801 | 14.849 | 1377 | 319.08 |
| Lemon | 3/0 | 19 | 1.524 | 11.938 | 14.986 | 1501 | 309.7 |
| Olive | 4/0 | 7 | 1.524 | 13.259 | 16.307 | 1728 | 381.58 |
| Pomegranate | 4/0 | 19 | 1.524 | 13.411 | 16.459 | 1823 | 382.69 |
| Sassafras | 250 | 19 | 1.524 | 14.580 | 17.628 | 2043 | 443.84 |
| Mulberry | 266.8 | 19 | 1.524 | 14.605 | 17.653 | 2182 | 467.55 |
| Basswood | 300 | 19 | 1.524 | 15.957 | 18.999 | 2404 | 525.3 |
| Anona | 336.4 | 19 | 1.524 | 16.916 | 19.964 | 2697 | 582.75 |
| Chinquapin | 350 | 19 | 1.524 | 17.221 | 20.269 | 2790 | 603.79 |
| Molles | 397.5 | 19 | 2.032 | 18.390 | 22.454 | 3123 | 713.88 |
| Sumac | 450 | 19 | 2.032 | 19.609 | 23.673 | 3719 | 798.89 |
| Huckleberry | 477 | 37 | 2.032 | 20.193 | 24.257 | 3810 | 841.98 |
| AAAC | |||||||
| Maple | 6 | 7 | 0.762 | 5.029 | 6.553 | 503 | 61.01 |
| Hornbeam | 4 | 7 | 0.762 | 6.350 | 7.874 | 798 | 92.12 |
| Linden | 2 | 7 | 1.143 | 8.026 | 10.312 | 1270 | 148.82 |
| Oilnut | 1/0 | 7 | 1.524 | 8.839 | 11.887 | 2023 | 247.03 |
| Waterash | 2/0 | 7 | 1.524 | 11.354 | 14.402 | 2445 | 302.01 |
| Shellbark | 3/0 | 7 | 1.524 | 12.751 | 15.799 | 3080 | 370.55 |
| Planetree | 4/0 | 7 | 1.524 | 14.300 | 17.348 | 3883 | 456.86 |
| ACSR | |||||||
| Walnut | 6 | 6/1 | 0.762 | 5.029 | 6.553 | 540 | 71.43 |
| Butternut | 4 | 6/1 | 0.762 | 6.350 | 7.874 | 844 | 108.64 |
| Hickory | 4 | 7/1 | 0.762 | 6.528 | 8.052 | 1070 | 123.52 |
| Pignut | 2 | 6/1 | 1.143 | 8.026 | 10.312 | 1293 | 178.58 |
| Beech | 2 | 7/1 | 1.413 | 8.357 | 10.643 | 1651 | 202.39 |
| Chestnut | 1 | 6/1 | 1.143 | 9.017 | 11.303 | 1610 | 220.25 |
| Almond | 1/0 | 6/1 | 1.524 | 10.109 | 13.157 | 1987 | 287.21 |
| Pecan | 2/0 | 6/1 | 1.524 | 11.354 | 14.402 | 2404 | 349.72 |
| Filbert | 3/0 | 6/1 | 1.524 | 12.751 | 15.799 | 3003 | 437.52 |
| Buckeye | 4/0 | 6/1 | 1.524 | 14.300 | 17.343 | 3787 | 540.2 |
| Hackberry | 266.8 | 18/1 | 1.524 | 15.469 | 18.517 | 3121 | 534.25 |
| DUPLEX SERVICE DROP CABLE | |||||||
| Code word | Phase Conductors | Bare Neutral | Nominal Weight | ||||
| Size & Number of Wires | Insulation Thickness | Nominal Diameter | Size & Number of Wires | Rated Strength | |||
| Bare | O.D. | ||||||
| mm | mm | mm | kg | kg/km | |||
| AAC | |||||||
| Pekingese | 6-1 | 1.14 | 4.1 | 6.4 | 6-7 | 255 | 94 |
| Collie | 6-7 | 1.14 | 4.6 | 6.9 | 6-7 | 255 | 97 |
| Cocker | 6-7 | 1.52 | 4.6 | 7.7 | 6-7 | 255 | 106 |
| Dachshund | 4-1 | 1.14 | 5.2 | 7.5 | 6-7 | 400 | 141 |
| Spaniel | 4-7 | 1.14 | 5.9 | 8.2 | 6-7 | 400 | 146 |
| Cairn | 4-7 | 1.52 | 5.9 | 8.9 | 6-7 | 400 | 156 |
| Doberman | 2-7 | 1.14 | 7.4 | 9.7 | 2-7 | 612 | 223 |
| Airedale | 1-19 | 1.52 | 8.4 | 11.5 | 1-7 | - | 290 |
| Basset | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-7 | 903 | 359 |
| Malemure | 1/0-19 | 1.52 | 9.4 | 12.5 | 1/0-7 | 903 | 359 |
| AAAC | |||||||
| Chihuahua | 6-1 | 1.14 | 4.1 | 6.4 | 6-7 | 499 | 94 |
| Vizsla | 6-7 | 1.14 | 4.6 | 6.9 | 6-7 | 499 | 97 |
| Harner | 4-1 | 1.14 | 5.2 | 7.5 | 4-7 | 798 | 143 |
| Whippet | 4-7 | 1.14 | 5.9 | 8.2 | 4-7 | 798 | 146 |
| Schnauzer | 2-7 | 1.14 | 7.4 | 9.7 | 2-7 | 1270 | 226 |
| Afghan | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-7 | 2023 | 360 |
| Heeler | 1-19 | 1.52 | 9.4 | 12.5 | 1/0-7 | 2023 | 360 |
| ACSR | |||||||
| Setter | 6-1 | 1.14 | 4.1 | 6.4 | 6-6/1 | 540 | 94 |
| Shepherd | 6-7 | 1.14 | 4.6 | 6.9 | 6-6/1 | 540 | 97 |
| Retriever | 6-7 | 1.52 | 4.6 | 7.7 | 6-6/1 | 540 | 106 |
| Eskimo | 4-1 | 1.14 | 5.2 | 7.5 | 4-6/1 | 844 | 141 |
| Terrier | 4-7 | 1.14 | 5.9 | 8.2 | 4-6/1 | 844 | 146 |
| Yorkshire | 4-7 | 1.52 | 5.9 | 8.9 | 4-6/1 | 844 | 156 |
| Chow | 2-7 | 1.14 | 7.4 | 9.7 | 2-6/1 | 1293 | 223 |
| Labrador | 1-19 | 1.52 | 8.4 | 11.5 | 1-6/1 | 1610 | 290 |
| Bloodhound | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-6/1 | 1987 | 359 |
| Bull | 1/0-19 | 1.52 | 9.4 | 12.5 | 1/0-6/1 | 1987 | 359 |
| TRIPLEX SERVICE DROP CABLE | |||||||
| Code word | Phase Conductors | Bare Neutral | Nominal Weight | ||||
| Size & Number of Wires | Insulation Thickness | Nominal Diameter | Size & Number of Wires | Rated Strength | |||
| Bare | O.D. | ||||||
| mm | mm | mm | kg | kg/km | |||
| AAC | |||||||
| Halotis | 6-1 | 1.14 | 4.115 | 6.4 | 6-7 | 255 | 152 |
| Pike | 6-7 | 0.76 | 4.67 | 6.2 | 6-7 | 255 | 143 |
| Patella | 6-7 | 1.14 | 4.67 | 7 | 6-7 | 255 | 159 |
| Albus | 6-7 | 1.52 | 4.67 | 7.7 | 6-7 | 255 | 198 |
| Fusus | 4-1 | 1.14 | 5.182 | 7.5 | 4-7 | 400 | 229 |
| Oyster | 4-7 | 1.14 | 5.89 | 8.2 | 4-7 | 400 | 237 |
| Argo | 4-7 | 1.52 | 5.89 | 8.9 | 4-7 | 400 | 258 |
| Clam | 2-7 | 1.14 | 7.42 | 9.7 | 2-7 | 612 | 359 |
| Thia | 2-7 | 1.52 | 7.42 | 10.5 | 2-7 | 612 | 383 |
| Mussel | 2-7 | 1.14 | 7.42 | 9.7 | 2-7 | 612 | 359 |
| Pyrula | 1-7 | 1.52 | 8.33 | 11.4 | 1-7 | 744 | 467 |
| Hyas | 1-19 | 1.52 | 8.43 | 11.5 | 1-7 | 744 | 469 |
| Murex | 1/0-7 | 1.52 | 9.35 | 12.4 | 1/0-7 | 903 | 513 |
| Purpura | 1/0-19 | 1.52 | 9.47 | 12.5 | 1/0-7 | 903 | 515 |
| Nasa | 2/0-7 | 1.52 | 10.52 | 13.6 | 2/0-7 | 1139 | 710 |
| Trophon | 2/0-19 | 1.52 | 10.64 | 13.7 | 2/0-7 | 1139 | 713 |
| Quahog | 3/0-7 | 2.03 | 11.79 | 15.9 | 3/0-7 | 1379 | 926 |
| lone | 3/0-19 | 2.03 | 11.94 | 16.0 | 3/0-7 | 1379 | 929 |
| Melita | 3/0-19 | 1.52 | 11.94 | 15.0 | 3/0-19 | 1501 | 881 |
| Coquina | 4/0-7 | 1.52 | 13.26 | 16.3 | 4/0-7 | 1737 | 1089 |
| Tusk | 4/0-7 | 2.03 | 13.26 | 17.3 | 4/0-7 | 1737 | 1141 |
| Apus | 4/0-19 | 2.03 | 13.41 | 17.5 | 4/0-7 | 1737 | 1144 |
| Portunus | 4/0-19 | 1.52 | 13.41 | 16.5 | 4/0-19 | 1823 | 1091 |
| Chiton | 266.8-19 | 2.03 | 14.88 | 18.9 | 266.8-19 | 2254 | 1409 |
| Nannynose | 336.4-19 | 2.03 | 16.92 | 21.0 | 336.4-19 | 2790 | 1749 |
| AAAC | |||||||
| Homarus | 6-1 | 1.14 | 4.115 | 6.4 | 6-7 | 499 | 159 |
| Minex | 6-1 | 1.14 | 4.115 | 13.3 | 6-7 | 499 | 159 |
| Cabera | 6-7 | 1.14 | 4.65 | 6.9 | 6-7 | 499 | 165 |
| Hippa | 6-7 | 1.14 | 4.65 | 6.9 | 6-7 | 499 | 165 |
| Artemia | 4-1 | 1.14 | 5.182 | 7.5 | 6-7 | 499 | 214 |
| Maira | 4-7 | 1.14 | 5.89 | 8.2 | 6-7 | 499 | 247 |
| Crab | 4-7 | 1.14 | 5.89 | 8.2 | 6-7 | 499 | 222 |
| Luidia | 4-1 | 1.14 | 5.182 | 7.5 | 6-7 | 499 | 214 |
| Prawn | 4-1 | 1.14 | 5.182 | 7.5 | 6-7 | 499 | 240 |
| Metalia | 4-7 | 1.14 | 5.89 | 8.2 | 4-7 | 798 | 247 |
| Barnacles | 4-7 | 1.14 | 5.89 | 8.2 | 4-7 | 798 | 247 |
| Solaster | 2-7 | 1.14 | 7.42 | 9.7 | 4-7 | 798 | 333 |
| Pagarus | 2-7 | 1.52 | 7.42 | 10.5 | 4-7 | 798 | 357 |
| Shrimp | 2-7 | 1.52 | 7.42 | 9.7 | 2-7 | 1270 | 374 |
| Lobster | 2-7 | 1.52 | 7.42 | 10.5 | 2-7 | 1270 | 397 |
| Encope | 1-19 | 1.52 | 8.43 | 11.5 | 2-7 | 1270 | 461 |
| Sanderab | 1/0-7 | 1.52 | 9.35 | 12.4 | 1/0-7 | 1270 | 537 |
| Echinus | 1/0-19 | 1.52 | 9.47 | 12.5 | 2-7 | 1270 | 539 |
| Gammarus | 1/0-7 | 1.52 | 9.35 | 12.4 | 1/0-7 | 2023 | 601 |
| Leda | 1/0-19 | 1.52 | 9.47 | 12.5 | 1/0-7 | 2023 | 603 |
| Crayfish | 2/0-7 | 1.52 | 10.5 | 13.6 | 2-7 | 1270 | 631 |
| Sipho | 2/0-19 | 1.52 | 10.5 | 13.7 | 2-7 | 1270 | 634 |
| Dungenese | 2/0-7 | 1.52 | 10.5 | 13.6 | 2/0-7 | 2445 | 740 |
| Cyclops | 2/0-7 | 1.52 | 10.6 | 13.7 | 2/0-7 | 2445 | 743 |
| Slug | 3/0-7 | 1.52 | 11.8 | 11.8 | 1/0-7 | 2023 | 816 |
| Fulgur | 3/0-19 | 1.52 | 11.9 | 15 | 1/0-7 | 2023 | 819 |
| Balanus | 3/0-19 | 2.03 | 11.9 | 16 | 1/0-7 | 2023 | 868 |
| Stonecrab | 3/0-7 | 1.52 | 11.8 | 14.8 | 3/0-7 | 3080 | 917 |
| Flustra | 3/0-7 | 1.52 | 11.9 | 15 | 3/0-7 | 3080 | 920 |
| Crisia | 3/0-19 | 2.03 | 11.9 | 16 | 3/0-7 | 3080 | 969 |
| Squid | 4/0-7 | 1.52 | 13.3 | 16.3 | 2/0-7 | 2431 | 1011 |
| Arca | 4/0-19 | 1.52 | 13.4 | 16.5 | 2/0-7 | 2431 | 1012 |
| Bugula | 4/0-19 | 2.03 | 13.4 | 17.5 | 2/0-7 | 2431 | 1066 |
| Kingerab | 4/0-7 | 1.52 | 13.3 | 16.3 | 4/0-7 | 3883 | 1137 |
| Lepas | 4/0-19 | 1.52 | 13.4 | 16.5 | 4/0-7 | 3883 | 1140 |
| Cassi | 4/0-19 | 2.03 | 13.4 | 17.5 | 4/0-7 | 3883 | 1194 |
| ACSR | |||||||
| Paludina | 6-1 | 1.14 | 4.115 | 6.401 | 6-6/1 | 540 | 170 |
| Voluta | 6-7 | 1.14 | 4.67 | 6.96 | 6-6/1 | 540 | 176 |
| Bolma | 6-7 | 1.52 | 4.67 | 7.722 | 6-6/1 | 540 | 194 |
| Scallop | 4-1 | 1.14 | 5.182 | 7.468 | 6-6/1 | 540 | 225 |
| Strombus | 4-7 | 1.14 | 5.89 | 8.179 | 6-6/1 | 540 | 232 |
| Carnea | 4-7 | 1.52 | 5.89 | 8.941 | 6-6/1 | 540 | 253 |
| Whelk | 4-1 | 1.14 | 5.182 | 7.468 | 4-6/1 | 844 | 258 |
| Periwinkle | 4-7 | 1.14 | 5.89 | 8.179 | 4-6/1 | 844 | 263 |
| Calma | 4-7 | 1.52 | 5.89 | 8.941 | 4-6/1 | 844 | 284 |
| Cockle | 2-7 | 1.14 | 5.89 | 8.179 | 4-6/1 | 844 | 335 |
| Gebia | 2-7 | 1.52 | 5.89 | 8.941 | 4-6/1 | 844 | 354 |
| Conch | 2-7 | 1.14 | 5.89 | 8.179 | 2-6/1 | 1293 | 384 |
| Uca | 2-7 | 1.52 | 5.89 | 8.941 | 2-6/1 | 1293 | 405 |
| Vermeths | 1-7 | 1.52 | 8.33 | 11.379 | 1-6/1 | 1610 | 522 |
| Atya | 1-19 | 1.52 | 8.33 | 11.379 | 1-6/1 | 1610 | 524 |
| Janthina | 1/0-7 | 1.52 | 8.33 | 11.379 | 2-6/1 | 1293 | 549 |
| Ranella | 1/0-19 | 1.52 | 8.33 | 12.522 | 2-6/1 | 1293 | 566 |
| Neritina | 1/0-7 | 1.52 | 9.47 | 12.395 | 1/0-6/1 | 1987 | 644 |
| Cenia | 1/0-19 | 1.52 | 9.47 | 12.522 | 1/0-6/1 | 1987 | 646 |
| Cavolinia | 2/0-7 | 1.52 | 10.5 | 13.564 | 1-6/1 | 1610 | 697 |
| Clio | 2/0-19 | 1.52 | 10.6 | 13.691 | 1-6/1 | 1610 | 698 |
| Runcina | 2/0-7 | 1.52 | 10.5 | 13.564 | 2/0-6/1 | 2404 | 796 |
| Triton | 2/0-19 | 1.52 | 10.6 | 13.691 | 2/0-6/1 | 2404 | 799 |
| Sanddollar | 3/0-7 | 1.52 | 11.8 | 14.834 | 1/0-6/1 | 1987 | 860 |
| Aega | 3/0-19 | 1.52 | 11.9 | 14.986 | 1/0-6/1 | 1987 | 862 |
| Pisa | 3/0-19 | 2.03 | 11.9 | 16.002 | 1/0-6/1 | 1987 | 911 |
| Cherrystone | 3/0-7 | 1.52 | 11.8 | 14.834 | 3/0-6/1 | 3003 | 987 |
| Mursia | 3/0-19 | 1.52 | 11.9 | 14.986 | 3/0-6/1 | 3003 | 990 |
| Mysis | 3/0-19 | 2.03 | 11.9 | 16.002 | 3/0-6/1 | 3003 | 990 |
| Cuttlefish | 4/0-7 | 1.52 | 13.3 | 16.307 | 2/0-6/1 | 2404 | 1066 |
| Cerapus | 4/0-19 | 1.52 | 13.4 | 16.459 | 2/0-6/1 | 2404 | 1069 |
| Nepatus | 4/0-19 | 2.03 | 13.4 | 17.475 | 2/0-6/1 | 2404 | 1121 |
| Razor | 4/0-7 | 1.52 | 13.3 | 16.307 | 4/0-6/1 | 3788 | 1225 |
| Zuzara | 4/0-19 | 1.52 | 13.4 | 16.459 | 4/0-6/1 | 3788 | 1229 |
| Alima | 4/0-19 | 2.03 | 13.4 | 17.475 | 4/0-6/1 | 3788 | 1281 |
| Callista | 266.8-19 | 2.03 | 15.1 | 19.126 | 3/0-6/1 | 3003 | 1384 |
| Dosinia | 266.8-19 | 2.03 | 15.1 | 19.126 | 266.8-18/1 | 3121 | 1472 |
| Cowry | 336.4-19 | 2.03 | 16.9 | 20.980 | 4/0-6/1 | 3788 | 1713 |
| Limpet | 336.4-19 | 2.03 | 16.9 | 20.980 | 336.4-18/1 | 3937 | 1823 |

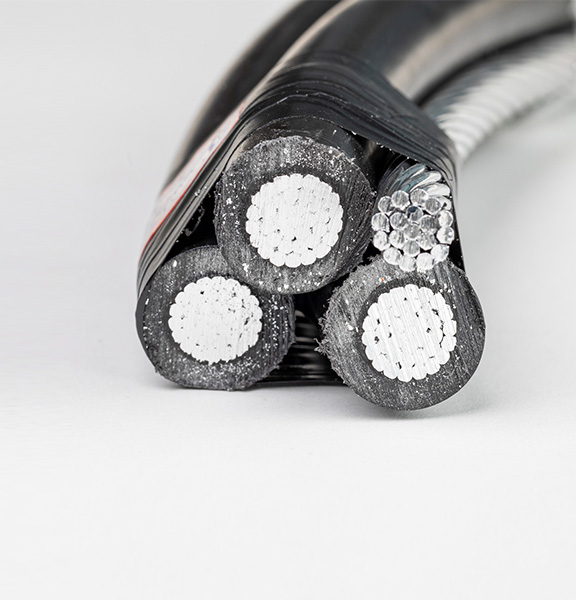

| QUADRUPLEX SERVICE DROP CABLE | |||||||
| Code word | Phase Conductors | Bare Neutral | Nominal Weight | ||||
| Size & Number of Wires | Insulation Thickness | Nominal Diameter | Size & Number of Wires | Rated Strength | |||
| Bare | O.D. | ||||||
| mm | mm | mm | kg | kg/km | |||
| AAC | |||||||
| Quarter | 6-1 | 1.143 | 4.115 | 6.401 | 6-7 | 256.371 | 211 |
| Clydesdate | 4-1 | 1.143 | 5.182 | 7.468 | 4-7 | 399.613 | 315 |
| Pinto | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 399.613 | 326 |
| Mustang | 2-7 | 1.143 | 7.417 | 9.703 | 2-7 | 612.347 | 491 |
| Shire | 1-19 | 1.524 | 8.433 | 11.481 | 1-19 | 743.886 | 646 |
| Libyan | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 902.644 | 790 |
| Criollo | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-19 | 902.644 | 793 |
| Orloff | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 1138.511 | 973 |
| Percheron | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-19 | 1138.511 | 976 |
| Mongolian | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 1378.914 | 1199 |
| Hanoverian | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-19 | 1378.914 | 1204 |
| Singlefoot | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-7 | 1737.250 | 1485 |
| Oldenburg | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-19 | 1737.250 | 1490 |
| AAAC | |||||||
| Bay | 6-1 | 1.143 | 4.115 | 6.401 | 6-7 | 503.485 | 217 |
| French-conch | 6-7 | 1.143 | 4.764 | 6.96 | 6-7 | 503.485 | 226 |
| German-conch | 4-1 | 1.143 | 5.182 | 7.468 | 4-7 | 798.318 | 324 |
| Arabian | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 784.711 | 336 |
| Belgian | 2-7 | 1.143 | 7.417 | 9.703 | 2-7 | 1270.052 | 506 |
| Saddle | 1-19 | 1.524 | 8.433 | 11.481 | 1-19 | 1270.052 | 637 |
| Plow | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 2023.011 | 814 |
| Sherland | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-19 | 2023.011 | 817 |
| Dapple-grey | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 2444.850 | 1005 |
| Thoroughbred | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-19 | 2444.850 | 1007 |
| Dobbin | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 3079.876 | 1238 |
| Trotter | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-19 | 3079.876 | 1243 |
| Pony | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-7 | 3882.730 | 1534 |
| Walking | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-19 | 3882.730 | 1539 |
| ACSR | |||||||
| Morochuca | 6-1 | 1.143 | 4.115 | 6.401 | 6-6/1 | 539.772 | 229 |
| Chola | 6-7 | 1.143 | 4.674 | 6.96 | 6-6/1 | 539.772 | 237 |
| Morgan | 4-7 | 1.143 | 5.182 | 7.468 | 4-6/1 | 843.677 | 344 |
| Hackney | 4-7 | 1.143 | 5.893 | 8.179 | 4-6/1 | 843.677 | 356 |
| Palomino | 2-7 | 1.143 | 7.417 | 9.703 | 2-6/1 | 1292.732 | 557 |
| Albino | 1-19 | 1.524 | 8.433 | 11.481 | 1-6/1 | 1610.245 | 699 |
| Standardbred | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-6/1 | 1986.724 | 859 |
| Costena | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-6/1 | 1986.724 | 862 |
| Chicoteagues | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-6/1 | 2404.027 | 1060 |
| Grullo | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-6/1 | 2404.027 | 1063 |
| Mare | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-6/1 | 3002.766 | 1306 |
| Suffolk | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-6/1 | 3002.766 | 1313 |
| Stallion | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-6/1 | 3787.477 | 1622 |
| Appaloosa | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-6/1 | 3787.477 | 1627 |
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
