Galvanized steel wire strand(GSW) is used for overhead ground lines or electrical power transmission lines. Stay wire or guy wire strands are produced for use with poles, towers, or any other form of guying. And it usually is the inner core of ACSR.
1.APPLIACATION: DISTRIBUTION LINE POWER NETWORKS.
2.STANDARD: ASTM A475,BS 183:1972,GB 1200.
3.INSTALLATION CONDITIONS: OPEN AIR.
4.ZINC COATING: 185-290g/m2(Class A), 520g/m2(Class B) & 780g/m2(Class C).
5.PACKAGING: BY ROLL, BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM.
Galvanized steel wire

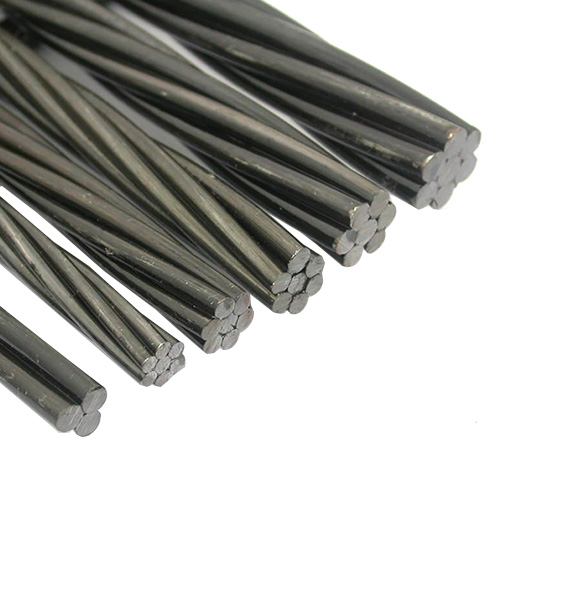

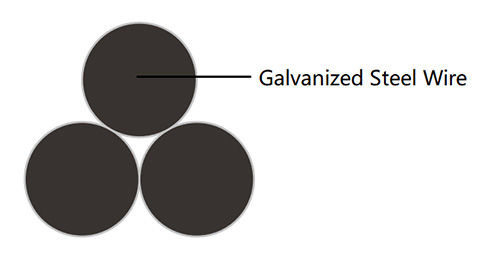

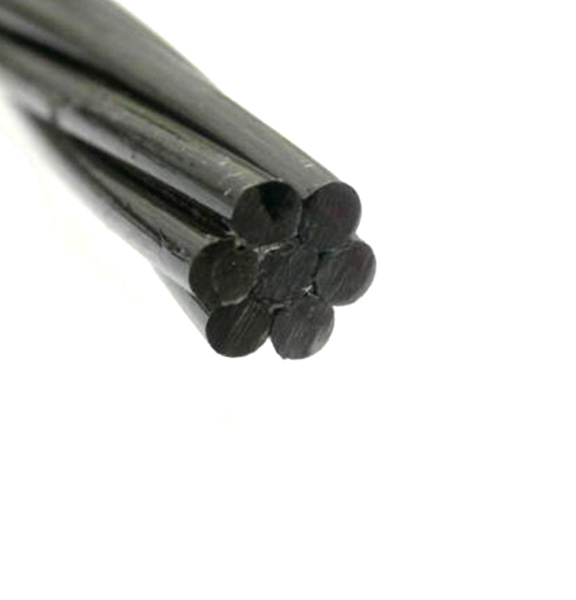

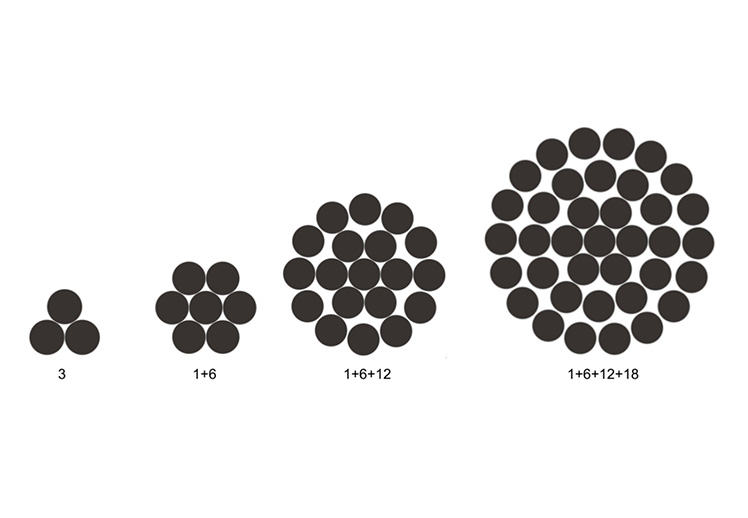

Generally, the Galvanized Steel Conductor is formed by the following construction:
| GALVANHIZED STEEL WIRE STRAND ASTM A475 | ||||||
| Number of Wires/Dia | Approx. Stand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Weight | |
| No./mm | Inch | mm | kN | kN | kN | kg/km |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131.00 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174.00 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.14 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 7/32 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 1/4 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 9/32 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 5/16 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262.000 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.720 | 505.318 | 721.502 | 4833 |
| GALVANHIZED STEEL WIRE STRAND BS 183 | |||||||||
| Number of Wires/Dia | Approx. Stand Dia. | Minimum Breaking Load of Strand | Weight | ||||||
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade1150 | Grade 1300 | |||
| No./mm | mm | kN | kN | kN | kN | kN | kN | kN | kg/km |
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 |
| 3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | - | - | 130 |
| 3/3.25 | 7.0 | 8.70 | 11.95 | - | - | - | - | - | 195 |
| 3/4.00 | 8.6 | 13.20 | 18.10 | - | - | - | - | - | 295 |
| 4/1.80 | 4.4 | 3.55 | 4.90 | - | - | - | - | - | 80 |
| 4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 |
| 4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 |
| 4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 |
| 5/1.50 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - | - | - | - | 220 |
| 5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | - | - | - | - | 320 |
| 5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 |
| 7/0.56 | 1.7 | 0.60 | 0.83 | 1.20 | - | 1.7 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.60 | 28 |
| 7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3.10 | - | 4.45 | 5.12 | 5.80 | 35 |
| 7/1.00 | 3.0 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 |
| 7/RS* | 4.3 | 3.85 | 5.28 | 7.70 | 9.35 | 11.00 | 12.65 | 14.30 | 86 |
| 7/1.60 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 |
| 7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 28.60 | 170 |
| 7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 35.20 | 39.80 | 240 |
| 7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | - | 38.60 | 44.40 | 50.20 | 300 |
| 7/3.00 | 9.0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 |
| 7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 |
| 7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66.80 | 75.50 | 460 |
| 7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | - | 73.25 | 84.20 | 95.20 | 570 |
| 7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88.00 | 101.0 | 114.00 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114 | 129.00 | 780 |
| 7/4.75 | 14.0 | 43.40 | 59.45 | 86.80 | - | 124 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8.0 | 13.37 | 18.35 | 26.75 | - | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.80 | 90.27 | 131.6 | 159.9 | 188.0 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20.0 | 83.55 | 114.6 | 167.1 | 203.0 | 238.7 | 274.6 | 310.4 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.6 | 235.7 | 286 | 336.7 | 387.2 | 437.7 | 2630 |
| GALVANHIZED STEEL WIRE STRAND GB 1200-88 | |||||||||
| Construction | Wire Dia. | Overall Dia. | Total Area | Specific Tensile Strength | Weight | ||||
| 1175 | 1270 | 1370 | 1470 | 1570 | |||||
| Min. Total Breaking Load of Wires | |||||||||
| mm | mm | mm2 | kN | kN | kN | kN | kN | kg/100m | |
| 1x3 | 2.90 | 6.2 | 19.82 | 23.29 | 25.17 | 27.15 | 29.14 | 31.12 | 15.99 |
| 3.20 | 6.4 | 24.13 | 28.35 | 30.65 | 33.06 | 35.47 | 37.88 | 19.47 | |
| 3.50 | 7.5 | 28.86 | 33.91 | 36.65 | 39.54 | 42.43 | 45.31 | 23.29 | |
| 4.00 | 8.6 | 37.70 | 44.3 | 47.88 | 51.65 | 8.08 | 59.19 | 30.42 | |
| 1x7 | 1.00 | 3.0 | 5.50 | 6.46 | 6.98 | 7.54 | 11.64 | 8.64 | 4.37 |
| 1.20 | 3.6 | 7.92 | 9.31 | 10.06 | 10.85 | 11.64 | 12.43 | 6.29 | |
| 1.40 | 4.2 | 10.78 | 12.67 | 13.69 | 14.77 | 15.85 | 16.92 | 8.56 | |
| 1.60 | 4.8 | 14.07 | 16.53 | 17.87 | 19.28 | 20.68 | 22.09 | 11.17 | |
| 1.80 | 5.4 | 17.81 | 20.93 | 22.62 | 24.40 | 26.18 | 27.96 | 14.14 | |
| 2.00 | 6.0 | 21.99 | 25.84 | 29.73 | 30.13 | 32.32 | 34.52 | 17.46 | |
| 2.30 | 6.9 | 29.08 | 34.17 | 36.93 | 39.84 | 42.75 | 45.66 | 23.09 | |
| 2.60 | 7.8 | 37.17 | 43.60 | 47.20 | 50.92 | 54.63 | 58.35 | 29.51 | |
| 2.90 | 8.7 | 46.24 | 54.33 | 58.72 | 63.35 | 67.97 | 72.06 | 36.71 | |
| 3.20 | 9.6 | 56.30 | 66.15 | 71.50 | 77.13 | 82.76 | 88.39 | 44.70 | |
| 3.50 | 10.5 | 67.35 | 79.14 | 85.85 | 92.27 | 99.00 | 105.74 | 53.48 | |
| 3.80 | 11.4 | 79.39 | 93.28 | 100.82 | 108.76 | 116.70 | 124.64 | 63.04 | |
| 4.00 | 12.0 | 87.96 | 103.35 | 111.71 | 120.50 | 129.30 | 138.10 | 69.84 | |
| 1x19 | 1.60 | 8.0 | 38.20 | 44.88 | 48.51 | 52.33 | 56.15 | 59.97 | 30.40 |
| 1.80 | 9.0 | 48.35 | 56.81 | 61.40 | 66.24 | 71.07 | 75.91 | 38.49 | |
| 2.00 | 10.0 | 59.69 | 70.14 | 75.81 | 81.78 | 87.74 | 93.71 | 47.51 | |
| 2.30 | 11.5 | 78.94 | 92.75 | 100.25 | 108.15 | 116.04 | 123.94 | 62.84 | |
| 2.60 | 13.0 | 100.88 | 118.53 | 128.12 | 138.20 | 148.29 | 158.38 | 80.30 | |
| 2.90 | 14.5 | 125.50 | 147.46 | 159.38 | 171.93 | 184.48 | 197.03 | 99.90 | |
| 3.20 | 16.0 | 152.81 | 179.55 | 194.06 | 209.35 | 224.63 | 239.91 | 121.64 | |
| 3.50 | 17.5 | 182.80 | 214.79 | 232.16 | 250.44 | 268.72 | 287.00 | 145.51 | |
| 4.00 | 20.0 | 238.76 | 280.54 | 303.23 | 327.10 | 350.98 | 374.86 | 190.05 | |
